Reading and Clearing Errors via ELS27 cable in FORScan

1. Preparation

Make sure the battery is charged or a stabilizer is connected (12.5–14 V).

Turn off all additional consumers: lights, radio, climate control.

Close the doors and the tailgate so that modules do not “wake up” during diagnostics.

Ignition ON, engine must not be started.

---

2. Connecting the ELS27

Connect the ELS27 to the vehicle’s OBD port.

Connect the USB cable to the laptop.

Launch FORScan.

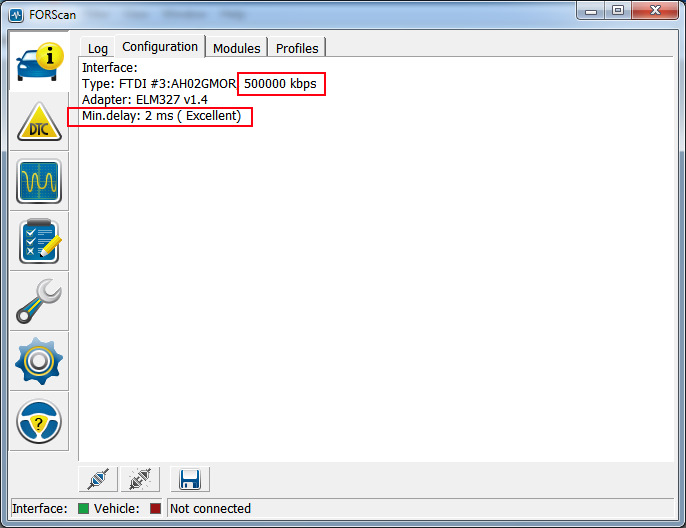

In the adapter settings, make sure ELS27 is selected.

Menu: Options → Adapter Configuration → Select ELS27.

Click Connect.

Wait until the program detects all vehicle modules.

---

3. Reading Errors (DTC)

Go to: Diagnostics → Read DTC.

Select the module you want to check, or choose All Modules.

Click Read DTC.

FORScan will display a list of errors:

• Error code (for example, P0301)

• Description

• Status (active / stored / past events)

🔹 You can take a screenshot or export the report using the FORScan buttons to keep a history.

---

4. Clearing Errors

After reading the DTCs, make sure the issue has been resolved (otherwise the error will return).

Click Clear DTC.

Confirm the reset and wait for the completion message.

FORScan will remove all current active errors from the selected module.

🔹 After clearing errors, it is recommended to:

• turn the ignition OFF and then ON,

• perform adaptations/learning if required,

• drive 10–15 km so the system can refresh the data.

---

5. Additional Tips

If FORScan does not detect a module, check:

• Vehicle power supply (voltage 12–14 V)

• Adapter settings (make sure ELS27 is selected correctly)

• Cable and USB port

For stable ELS27 operation, use a direct USB cable without adapters or hubs.

Save backup DTC reports before clearing, especially when dealing with complex issues.

---

Activating Features via ELS27 in FORScan

Module Selection

Go to the menu:
Configuration and Programming → Module Configuration / Feature Programming.

Select the module in which you want to activate a feature
(for example, BCM for lighting features, IPC for instrument cluster menus).

FORScan will display a list of available parameters (options) for the module.

---

Feature Activation

Find the required feature in the list.

Change the value to Enabled / ON / 1 (depending on the parameter type).

If multiple features need to be activated, select all required ones.

Click Apply Changes or Program.

FORScan will first check compatibility and switch the module into programming mode.

---

Process Completion

Wait for the message: Programming completed successfully.

Cycle the ignition OFF → ON.

Check the operation of the new feature in the vehicle.

If necessary, restart the module or clear DTCs.



Feature Name	Module	Address	Value change			Notes
	Auto Start/Stop Disable - by disabling BMS (Battery Management System)	BCM	726-48-02	x0xx	xxxx	xxxx
		FCIM	7A7-01-01	xxxx	x0xx	xxxx	(optional - disables switch)
		IPC	720-01-01	xxxx	1xxx	xxxx	(optional - disables stop/start message center in the trip/fuel IPC menu)
	DRL - Position Lamp Cfg	BCM	726-29-02	x1xx	xxxx	xxxx	position lamps at full brightness like Super Duty
	DRL - Parking Lights only (stock LEDs only)	BCM	726-26-02	x1xx	xxxx	xxxx	** Testing DRLs: Make sure all of the following are set: ** 1. Daytime Lights box checked in cluster under settings, adv settings, vehicle, lighting 2. Headlamp switch in the Auto position 3. Truck must be in gear for DRLs to work
			726-50-01	01xx
	DRL - Parking Light only (Halogens)	BCM	726-26-02	x1xx	xxxx	xxxx
			726-45-01	xxxx	7Fxx	xxxx
			726-50-01	108E
	DRL - Parking Lights & Low Beams only	BCM	726-26-02	x1xx	xxxx	xxxx
			726-50-01	02xx
	DRL - Parking Lights & Turns only	BCM	726-45-01	xxxx	7Fxx	xxxx
			726-26-02	x1xx	xxxx	xxxx
			726-50-01	08xx
	DRL - Anzo switchback white halo	BCM	726-45-01	xxxx	7Fxx	xxxx
			726-26-02	x1xx	xxxx	xxxx
			726-50-01	10xx
	DRL - Turns only (Halogen/aftermarket lights only)	BCM	726-45-01	xxxx	7Fxx	xxxx	** On stock LEDs this will also illuminate outer halo
			726-50-01	08xx
	DRL - Front Fog Lights only	BCM	726-45-01	xxxx	7Fxx	xxxx	To enable DRL Parking Lights with these set 726-26-02: x1xx xxxx xxxx also
			726-50-01	04xx
	DRL - High beams only	BCM	726-45-01	xxxx	7Fxx	xxxx
			726-50-01	20xx
	Powerfold Mirrors (trucks without memory buttons)	DDM	740-03-01	*xxx	xx		0=disabled, 8=enabled
		PDM	741-03-01	*xxx	xx
							** click here for tmcolegr's post on retrofitting non-folding to folding mirrors
	Autofold Mirrors	DDM	740-03-01	x8xx	xx		** Tow mirrors require swapping pin 18 & 19 on mirror connector (see posts linked below) **
		DDM	740-12-01	Fxxx			Tow Mirror mod instructions
		PDM	741-03-01	x8xx	xx		B-ManFX4's comprehensive write-up w/pics on tow mirror mod here
		PDM	741-12-01	Fxxx			regular autofold vs Lincoln autofold explained
	Autofold Mirrors - Lincoln Style (see desc in Notes)	DDM	740-03-01	x84x	xx		** Tow mirrors require swapping pin 18 & 19 on mirror connector (see posts linked above) **
		DDM	740-12-01	Fxxx			regular autofold vs Lincoln autofold explained
		PDM	741-03-01	x84x	xx
		PDM	741-12-01	Fxxx
	Reverse Tilt Mirrors	DDM	740-03-01	Fxxx	xx		** Note: this only works for mirrors with memory **
		DDM	740-13-01	Fxxx			Select left/right mirror, put truck in Reverse and mirror will automatically tilt down toward curb and then return to normal position when gear is changed.
		PDM	741-03-01	Fxxx	xx		Follow this link for the proper adjustment procedure for this mod
		PDM	741-13-01	Fxxx			** For a 2018 740/741-13-01 may require FCxx **
	Global Window Open/Close	BCM	726-17-01	0101	0101	014A	After pressing lock/unlock on fob, press lock/unlock again and hold button for front windows to go up/down
		BCM	726-17-02	0101	0101	014B
		BCM	726-30-01	0101	xxxx	xxxx
		DDM	740-05-01	Dxxx	xx
		PDM	741-05-01	Dxxx	xx
	Disabling Canadian forced DRLs to cluster controlled	BCM	726-16-02	0101	0101	014A	DRL Cluster Control 1 enabled
		BCM	726-21-01	xxxx	xxxx	x1xx
		IPC	720-02-01	xxEx	xxxx	xxxx	Daytime Lights option & Lane Keeping System present in Settings
		OR
		IPC	720-02-01	xxCx	xxxx	xxxx	Daytime Lights option present & Lane Keeping System absent in Settings
	Double Horn Honk disable	BCM	726-41-02	xxx0	xxxx	xxxx
	Auto Relock enable (2015-2016s)	BCM	726-15-02	0101	0101	0149	If truck unlocked with fob, truck auto relocks after 45 seconds
	Auto Relock enable (2017-present)	BCM	726-15-02	0101	0101	0149
		BCM	726-21-01	xxxx	x1xx	xxxx
		BCM	726-38-02	xxxx	xxx*	xxxx	Auto Relock Time Duration: 1=30 seconds, 2=45 seconds
	Allows NAV & ability to read text messages while vehicle in motion	APIM	7D0-02-01	5753	xxxx	xxxx	Sync2 - Sirius Travel Link no longer works
							Sync3 - 911 assist will be disabled with this enabled. Speed limit sign will look European and FM radio stations will have and extra number like 102.70 instead of 102.7
	Ability to do fogs & high beams at same time aka "Bambi mode"	BCM	726-27-01	xxxx	xxx0	xxxx	Bambi mode without high beam/fogs remembered after ignition off/on
		BCM	726-27-01	xxxx	xxx0	01xx	Bambi mode with high beam/fogs remembered after ignition off/on
	Driver seatbelt minder status off	IPC	720-01-01	xxxx	xx2x	xxxx
	Passenger seatbelt minder status off	IPC	720-01-01	xxxx	xx4x	xxxx
	Driver & passenger seatbelt minder status off	IPC	720-01-01	xxxx	xx0x	xxxx
	Disables Door Ajar warning chime	IPC	720-01-02	xx0x	xxxx
	Engine temp & Transmission temp shows above gauges (8" Clusters only)	IPC	720-07-01	xxxx	xE5x	xxxx	** use this if you have trailer brake controller and turbos **
		IPC	720-07-01	xxxx	x65x	xxxx	** use this if you don't have trailer brake controller but have turbos **
		IPC	720-07-01	xxxx	xA5x	xxxx	** use this if you have TBC but don't have turbos **
		IPC	720-07-01	xxxx	x25x	xxxx	** use this if you don't have TBC or turbos **
	IPC Quick Boot (No Ford animation shows on cluster)	IPC	720-07-01	xxxx	xxxx	2xxx
	Enables stereo to be turned on without Accessories on (2015 F150s only)	APIM	7D0-01-01	xx2x	xxxx	xxxx	2016 Models already have this capability
	Fake engine noise disable	ACM	727-01-01	xxxx	x0xx	xxxx
		DSP	783-01-01	Exxx	xxxx		<---2018 Lariat+ models may require this also
	Heated & Cooled Seat Icons on home & climate screen	APIM	7D0-01-01	xxxx	xxxx	x2xx	** use this for Sync 3 **
		APIM	7D0-01-01	xxxx	xxxx	A6xx	** use this for Sync 2, also enable Climate Quadrant for this **
	Heated & Cooled Seat Icons AND Heated Steering Wheel on home & climate screen	APIM	7D0-01-01	xxxx	xxxx	x6xx	** use this for Sync 3 **
	Climate Quadrant enabled (only Sync 2)	APIM	7D0-04-01	xxxx	xxx0	xxxx
	Powerpoint timeout disabled	BCM	726-39-01	1194	x0xx	xxxx	Click here for a hardware mod that achieves the same thing
	Powerpoint timeout enabled & set to 1 second	BCM	726-39-01	0001	x1xx	xxxx	use DeltaNu1142's powerpoint timeout calculator here **
	Hill Descent Control enabled (2015-2017s)	ABS	760-03-01	x*xx	xx
		If you have 0 for asterisk make it 2, if 4 make it 6, if 8 make A, if C make E, if 1 make it a 3					** also need this switch **
							youtube video showing removing front cover to access switch
	Hill Descent Control enabled (2018-2020s)	ABS	760-03-01	*xxx	xx		if your as-built is 0, use 2, if as-built is 1, use 3. if as-built is D, use F. If as-built is 5, use 7. If as-built is 4, use 6
	Trailer Brake Control Module enabled	IPC	720-07-01	xxxx	x*xx	xxxx	if your as-built is 0, use 8. if your as-built is 6, use E
	Trailer Brake Controller Gain Setting enabled	IPC	720-04-01	xx4x	xxxx	xxxx
	Perpendicular Park enable	PAM	736-04-01	x2xx	xxxx		** only for trucks that already have Active Park Assist **
	Secure Idle enable	BCM	726-42-01	x1xx	xxxx	xxxx	if engine is running but fob is away from vehicle, vehicle cannot be put into any gear
	Panic Alarm	BCM	726-37-01	xxxx	xxx0	xxxx	Panic alarm on fob disabled
		BCM	726-37-01	xxxx	xxx1	xxxx	Panic alarm on fob requires 2 presses
		BCM	726-37-01	xxxx	xxx2	xxxx	Panic alarm on fob enabled
	Panic Alarm	BCM	726-01-02	xxx0	xxxx	xxxx	Panic alarm - lights & horn
		BCM	726-01-02	xxx1	xxxx	xxxx	Panic alarm - lights only
	Adding Climate menu on Sync (XL/XLTs)	APIM	7D0-01-01	xxxx	xxx3	xxxx	The following won't work on XLT w/climate: Max A/C, Auto mode, Temp (numerical) settings, Fan speed, Max Defrost
			7D0-01-02	xxxx	x2xx	xxxx
	Auxiliary External Subwoofer	ACM	727-01-01	xxx8	xxxx	xxxx	** use this for aftermarket kicker sub & amp **
	Sync 3 New Blue Theme - GT Performance boot animation - doesn't work on Sync 3 v3.4	APIM	7D0-01-02	0xxx	xxxx	xxxx
			7D0-02-01	xxxx	xDxx	xxxx
			7D0-03-01	xxxx	x4xx	xxxx
	Variable Line Level Preamp Outputs From ACM (for adding aftermarket amp without sound clipping)	ACM	727-01-01	xx5A	xxxx	xxxx	See DanMc85's post here for a write-up on this
			727-01-02	00xx	xxxx	xxxx
		APIM	7D0-01-01	2xxx	xxxx	xxxx	<--- this change required only if you have Sony DSP
	Stereo Extended Play	APIM	7D0-01-01	xx*x	xxxx	xxxx	Stereo Extended Play: A=off, 2=20mins, 3=30mins, 4=40mins, 5=50mins, 6=60mins (Sync 2 & Sync 3)
	Turn Signal Flashes (# of)	SCCM	724-01-01	xxxx	x*xx	xx	0=1 flash, 4=2 flashes, 6=3 flashes, 8=4 flashes, A=5 flashes, C=6 flashes, E=7 flashes ** see SCCM spreadsheet for more options **
							** when trailer is connected the truck will add 2 flashes to the above values **
	TPMS "Specified" Value Displayed (Placard pressure)	IPC	720-04-01	xx*x	xxxx	xxxx
							Trailer Brake Controller Gain & TPMS Specified Value 0=TBC Gain disabled & TPMS Specified Value disabled 4=TBC Gain enabled & TPMS Specified Value disabled 8=TBC Gain disabled & TPMS Specified Value enabled C=TBC Gain enabled & TPMS Specified Value enabled
							click here for a picture of what this does
							** Note: the value(s) displayed here is from BCM 726-40-01 xxxx **** xxxx
	Remote Start - Aftermarket enable	BCM	726-22-02	xxx1	xxxx	xxxx
		BCM	726-38-02	xxx0	xxxx	xxxx	<-- optional, disables horn honk with 2 presses of lock button on fob
			* see IPC spreadsheet 720-02-02 xxxx **xx for adding remote start climate/duration settings to the cluster menu
	Intrusion Alarm Enable	IPC	720-02-02	5xxx	xx		These settings are for those who add the intrusion sensors after buying their truck. After making the changes run a BdyCM LIN New Module Initialization in FORScan wrench icon. This also works on the 4.2" cluster
		BCM	726-02-01	xxxx	x1xx	xxxx
			726-34-01	x1xx	xxxx	xxxx
			726-39-02	x1xx	xxxx	xxxx	See this write-up by Firerunner for adding intrusion sensor
	Auto Lock Control present in cluster settings (absent in some 2018 F150s)	IPC	720-01-01	xxxB	xxxx	xxxx	<-- use this for XL/XLTs
			720-01-01	xxxF	xxxx	xxxx	<-- use this for Lariat+ models
							** This is located in cluster menu under settings, adv settings, vehicle, locks
	Disables three "doo-doo-doo" start-up chimes from cluster	IPC	720-01-02	xxxx	x2xx
	Adding reverse camera to non-touchscreen unit	FCDIM	7A5-01-01	x2xx	xxxx	xxxx	After making the changes run a BdyCM LIN New Module Initialization in FORScan wrench icon
		BCM	726-39-02	xxxx	x1xx	xxxx
	NAV/Audio Controls in Motion (if passenger in vehicle)	APIM	7D0-09-04	xxxx	xxxx	*xxx	enable DRPE - requires 3.4.21265 or above and MY18.5 -E* firmware

Step-by-Step Programming (Firmware Update) Process Using the ELS27 Adapter in FORScan

1. Preparation

Fully charge the battery or connect a stabilizer (13.2–14.0 V).

Turn off all additional devices: radio, lights, climate control, heaters.

Make sure all doors and the tailgate are closed.

Ignition ON, engine must not be started.

---

2. Connecting and Reading Modules

Connect the adapter to the OBD port and to the PC.

In Device Manager, make sure the port parameters are set correctly.

Launch FORScan and connect to the vehicle.

Wait until the program detects all modules.

Go to the menu: Programming and Configuration → Module Firmware Update.

Select the module you want to flash (for example, PCM, ABS, BCM, TCM).

---

3. Checking Available Firmware

FORScan will display the current Strategy, Calibration, and Boot versions.

The program will offer available newer versions.

Leave the suggested values if you are not sure — this is the safest option.

---

4. Backup

Click Download/Save current firmware.

Save the files for recovery in case of an error.

---

5. Pre-Programming Settings

Enable Stop bus activity.

If required, enable Program unchanged firmware (rewrite all files).

Enable Recovery mode only if the module is already “dead”.

---

6. Starting the Programming Process

Click Start.

FORScan will switch the module into programming mode.

The SBL (Secondary Boot Loader) will be loaded.

The program will write all firmware files.

Important:
Do not turn off the ignition, do not touch the cable, do not start the engine, and do not move the laptop.

---

7. Completion

Follow the FORScan prompts (sometimes ignition cycling is required).

Clear DTC errors.

Make sure communication with the module is restored.

If you see the message “Programming completed successfully”, the process has finished successfully.

---

8. Troubleshooting Common Issues

SBL does not load:
Check power supply and adapter, enable Stop bus activity, try another adapter.

Write / verification error:
Reconnect the adapter, re-download the firmware, enable Program unchanged firmware.

Module is “dead” after flashing:
Use Recovery mode and restore from the backup.

Low voltage:
Connect a stabilizer/charger and wait until voltage reaches 13+ V.

No firmware available:
Check internet connection, update FORScan; the module may not be supported.

New DTCs appear:
Perform adaptation procedures, clear errors, drive 10–15 km, and if necessary roll back to the backup.

---
